Konfigurasi Modem Raisecom RC551E-4GE Antara Shelter Dengan Pelanggan
Welcome back to my blog, kali ini saya akan memberitahukan tutorial mengkonfigurasi Modem raisecom antara shelter dengan pelanggan.
Device dan media yang di butuhkan adalah:

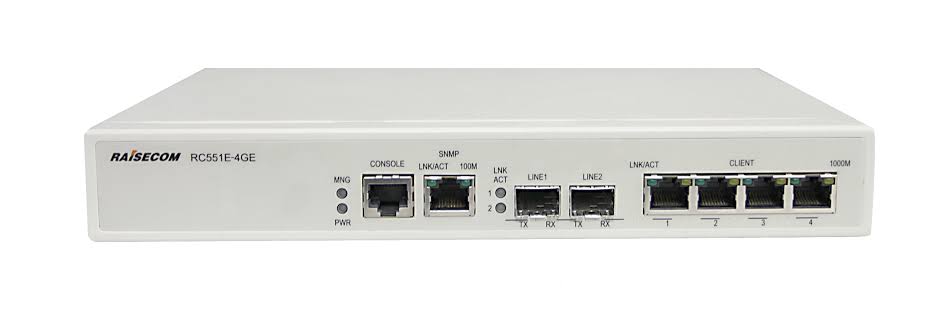

1. Modem Raisecom RC551E-4GE.

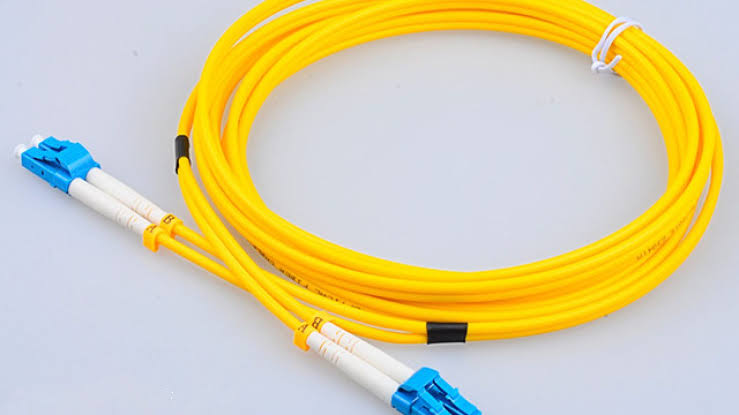

2. Kabel FO (Fiber Optic).

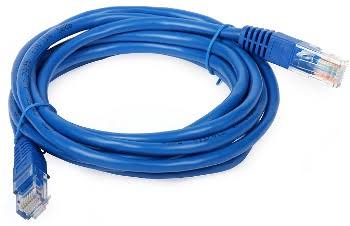

3. Kabel Ethernet.
4. Kabel Serial.
5. Komputer/Laptop.
Software:
Topologi:
Sebelum memulai konfigurasi, kita siapkan dulu alat dan kabel-kabel hingga terpasang dengan benar.

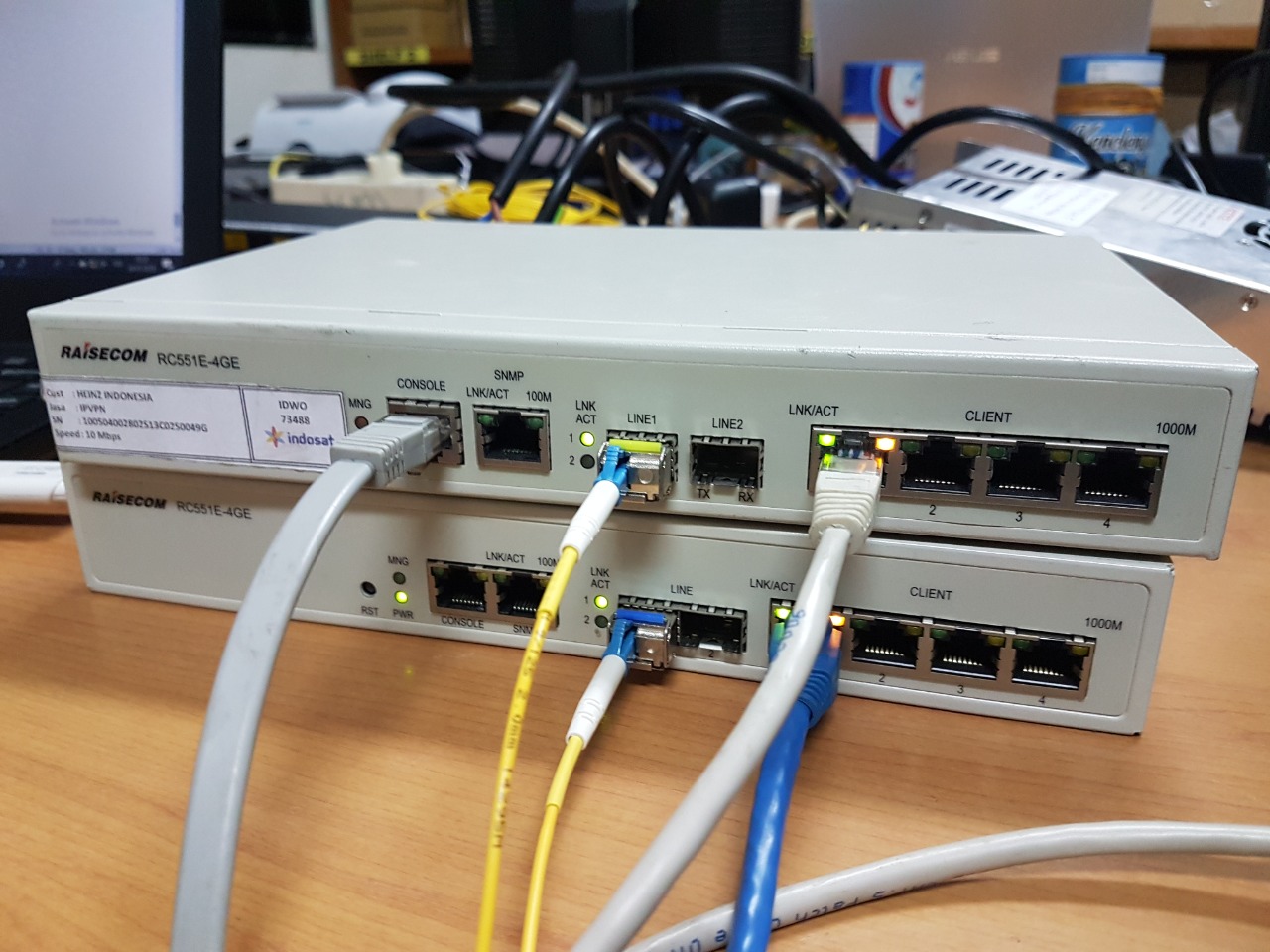

Contoh nya seperti ini:
Konfiguasi nya:
Shelter Raisecom.
Username:raisecom
Password:********(raisecom)
enable
Password:********(raisecom)
hostname (masukan hostname)
Configure Terminal
(masuk ke global konfig)
create vlan (buat vlan) , vlan 888 active
interface line (masukan interface line)
switchport trunk allowed vlan ...,...
switchport trunk untagged vlan remove ...
swithcport mode trunk
interface client (masukan interface client)
switchport trunk allowed vlan ...,...
switchport trunk unttaged vlan remove ...
switchport mode trunk
vlan (masukkan vlan)
name traffic
vlan (masukkan vlan)
name manage
ip address (masukan ip) 888 line 1,2 client 1-4
ip default-gateway (ip gateway)
transcevier digitaldiagnotic enable
Pelanggan Raisecom.
Username:raisecom
Password:********(raisecom)
enable
Password:********(raisecom)
hostname (masukkan hostname)
Configure Terminal
(masuk ke global konfig)
create vlan (masukan vlan),888 active
interface line (masukan interface line)
switchport trunk allowed vlan (vlan yang sudah di buat),888
switchport trunk untagged vlan remove 1
swithcport mode trunk
interface client (masukan interface client)
switchport access vlan (masukkan vlan)
vlan (masukan vlan)
name traffic
vlan 888
name manage
ip address (Masukkan ip address) 888 line 1,2 client 1-4
ip default-gateway (masukkan ip address gateway)
transcevier digitaldiagnotic enable
